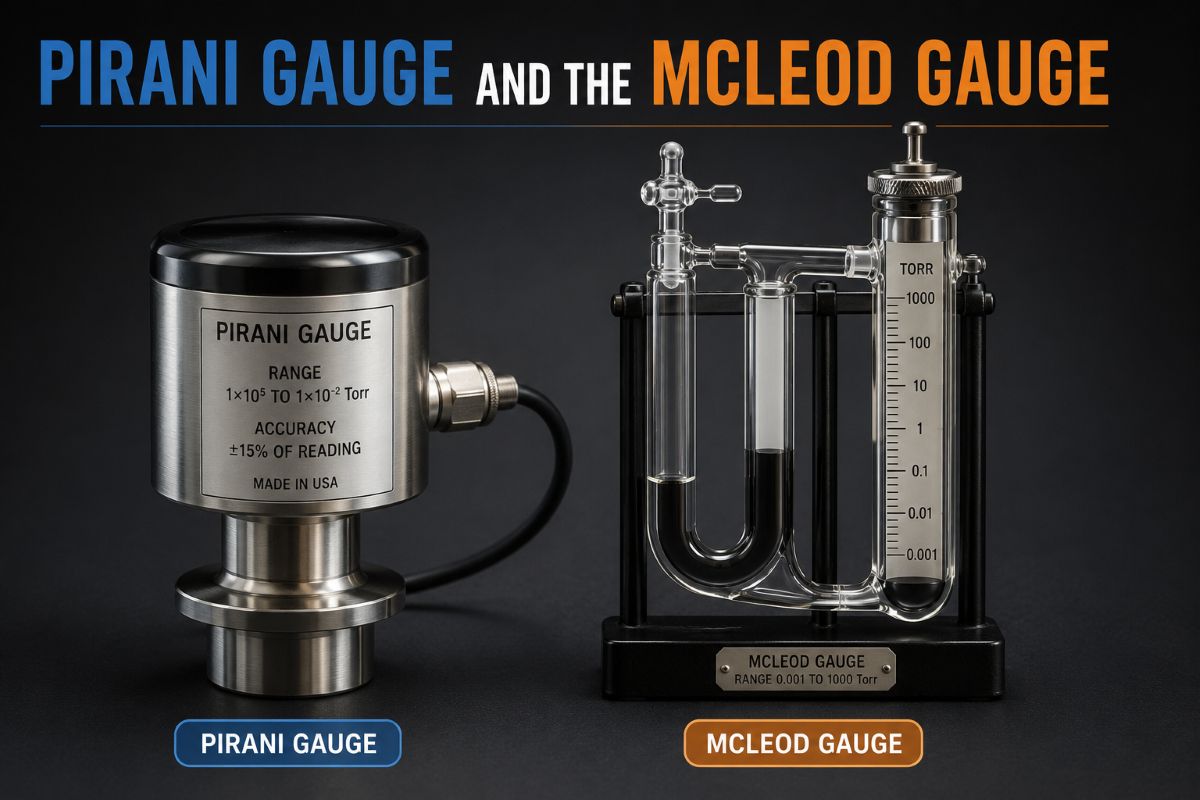

Pirani Gauge and the McLeod Gauge
Vacuum Gauges Explained
Pirani Gauge & McLeod Gauge — Simply Explained
A vacuum simply means a space with very little air or gas — lower pressure than the atmosphere around us. To measure how much vacuum has been created, we use special instruments called vacuum gauges. Two of the most widely used vacuum gauges in industry and laboratories are the Pirani Gauge and the McLeod Gauge. Let’s understand both of them in simple language.
⚡ Pirani Gauge
🔹 What is a Pirani Gauge?
A Pirani gauge measures vacuum by using heat. It was invented by Marcello Pirani in 1906. The basic idea is simple: gas molecules carry heat away from a hot wire. The fewer gas molecules there are (i.e., the better the vacuum), the less heat is carried away — and the hotter the wire becomes. By measuring how hot the wire gets, we can calculate the pressure.
🔹 How Does It Work? — The Basic Idea
Step 1 — Heat a Wire
A thin metal wire (usually tungsten or platinum) inside a tube is heated by passing an electric current through it.
Step 2 — Gas Cools the Wire
Gas molecules hit the wire and carry heat away. More gas molecules = more cooling. Less gas = less cooling.
Step 3 — Measure Temperature
The wire’s resistance changes with temperature. A Wheatstone bridge circuit measures this change to give us the pressure reading.
🔹 Key Facts About Pirani Gauge
| Feature | Detail |
|---|---|
| Working Principle | Thermal conductivity of gas |
| Pressure Range | 0.5 Pa to 0.001 Pa (roughly 10⁻³ mbar to 1 mbar) |
| Sensing Element | Heated tungsten or platinum wire |
| Output Type | Electrical (via bridge circuit) |
| Suitable For | Medium and high vacuum measurement |
✅ Advantages
✔ Compact and rugged design
✔ Continuous electrical output
✔ No moving parts — reliable
✔ Can be used for control systems
⚠️ Limitations
✗ Reading changes with gas type
✗ Not suitable for very high vacuum (below 10⁻³ Pa)
✗ A wire can burn out if exposed to the atmosphere suddenly
🧪 McLeod Gauge
🔹 What is a McLeod Gauge?
A McLeod gauge measures very low pressures by using a smart trick: it compresses a known volume of gas into a much smaller volume, making the pressure large enough to measure accurately. It was invented by Herbert McLeod in 1874. It is based on Boyle’s Law — the classic gas law that says if you compress a gas into a smaller space (at the same temperature), the pressure goes up in proportion.
Boyle’s Law (The Core Principle)
P₁ × V₁ = P₂ × V₂
If Volume goes DOWN → Pressure goes UP (at constant temperature)
🔹 How Does It Work? — Step by Step
Trap the Gas
A large bulb is connected to the vacuum system. Gas at an unknown low pressure fills this bulb.
Compress It
Mercury is raised (by lowering a reservoir or rotating the gauge) to trap and compress the gas into a tiny capillary tube.
Read the Height
The difference in mercury levels between the capillary tube and a reference tube is measured. This height difference gives the compressed pressure.
Calculate Pressure
Using Boyle’s Law and the known volumes, the original unknown pressure is calculated accurately.
🔹 Key Facts About McLeod Gauge
| Feature | Detail |
|---|---|
| Working Principle | Boyle’s Law (gas compression) |
| Pressure Range | 10⁻¹ Pa down to 10⁻⁴ Pa (very high vacuum) |
| Working Fluid | Mercury |
| Output Type | Direct mechanical reading (visual) |
| Suitable For | High and ultra-high vacuum; calibration standard |
✅ Advantages
✔ Very accurate — used as a standard
✔ Independent of gas type
✔ Can measure extremely low pressures
⚠️ Limitations
✗ Uses hazardous mercury
✗ Cannot give continuous readings — only intermittent
✗ Cannot measure condensable vapours (they liquefy during compression)
⚖️ Quick Comparison: Pirani vs McLeod
| Parameter | ⚡ Pirani Gauge | 🧪 McLeod Gauge |
|---|---|---|
| Principle | Thermal conductivity | Boyle’s Law compression |
| Pressure Range | Medium vacuum | High/ultra-high vacuum |
| Reading Type | Continuous electrical | Intermittent/manual |
| Moving Parts | None | Yes (mercury reservoir) |
| Gas Type Effect | Yes — varies by gas | No — works for any gas |
| Calibration Standard | No | ✅ Yes — primary standard |
| Hazard | Wire burnout risk | Mercury toxicity risk |
💡 In Simple Words — Key Takeaway
The Pirani gauge works like a temperature sensor for gas density — it uses a heated wire and measures how fast gas cools it down. It is compact, gives continuous readings, and is widely used in industrial vacuum systems.
The McLeod gauge works like a magnifying glass for pressure — it squeezes a large volume of low-pressure gas into a tiny space to make the pressure measurable. It is highly accurate, works for any gas, and serves as a calibration standard — though it cannot read continuously and contains mercury.
